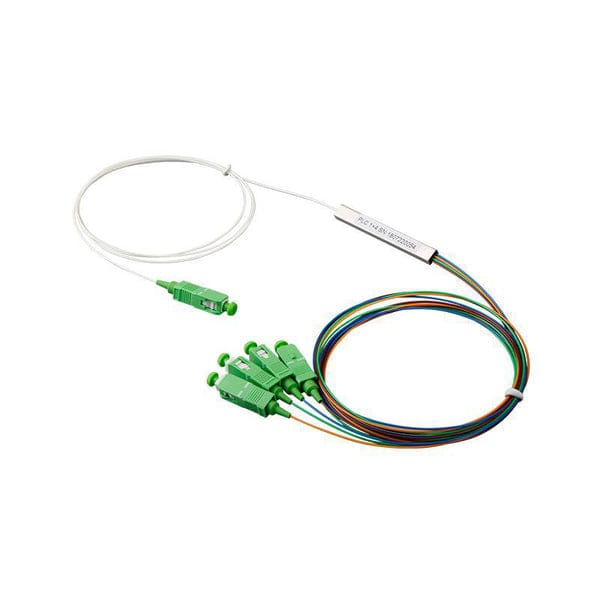

Fiber Optic PLC Splitter 1:4

The IT-Link 1:4 PLC Splitter divides one fiber optic input signal into four equal output signals using planar lightwave circuit technology. This makes it ideal for second-level splitting in FTTH networks, where a single feeder fiber needs to serve four subscriber drops. The splitter operates across the full 1260-1650 nm wavelength range with a maximum insertion loss of 7.4 dB and return loss greater than 50 dB (UPC polish), ensuring minimal signal degradation. Spectral uniformity of less than 0.6 dB guarantees consistent power distribution across all four output ports. The compact mini module housing with 0.9 mm SC/UPC pigtails integrates seamlessly into distribution frames, TJ boxes, and splice closures. Rated for -40 to +85 degrees C and compliant with Telcordia GR-1209 and GR-1221 standards for telecom-grade reliability.
